ELEGOO OrangeStorm Giga 3D Yazıcı

164,698.00TL
164,698.00TL 164,698.00TL
KDV Dahil
🕑
Bu ürün ön sipariş ile satılmaktadır.
Tahmini kargoya veriliş tarihi: 14 - 21 Nisan 2025
İthalat süreçlerinde yaşanabilecek aksaklıklardan firmamız sorumlu değildir.
Brand: ELEGOO
SKU: EL-3D-OSG
164,698.00TL
164,698.00TL 164,698.00TL

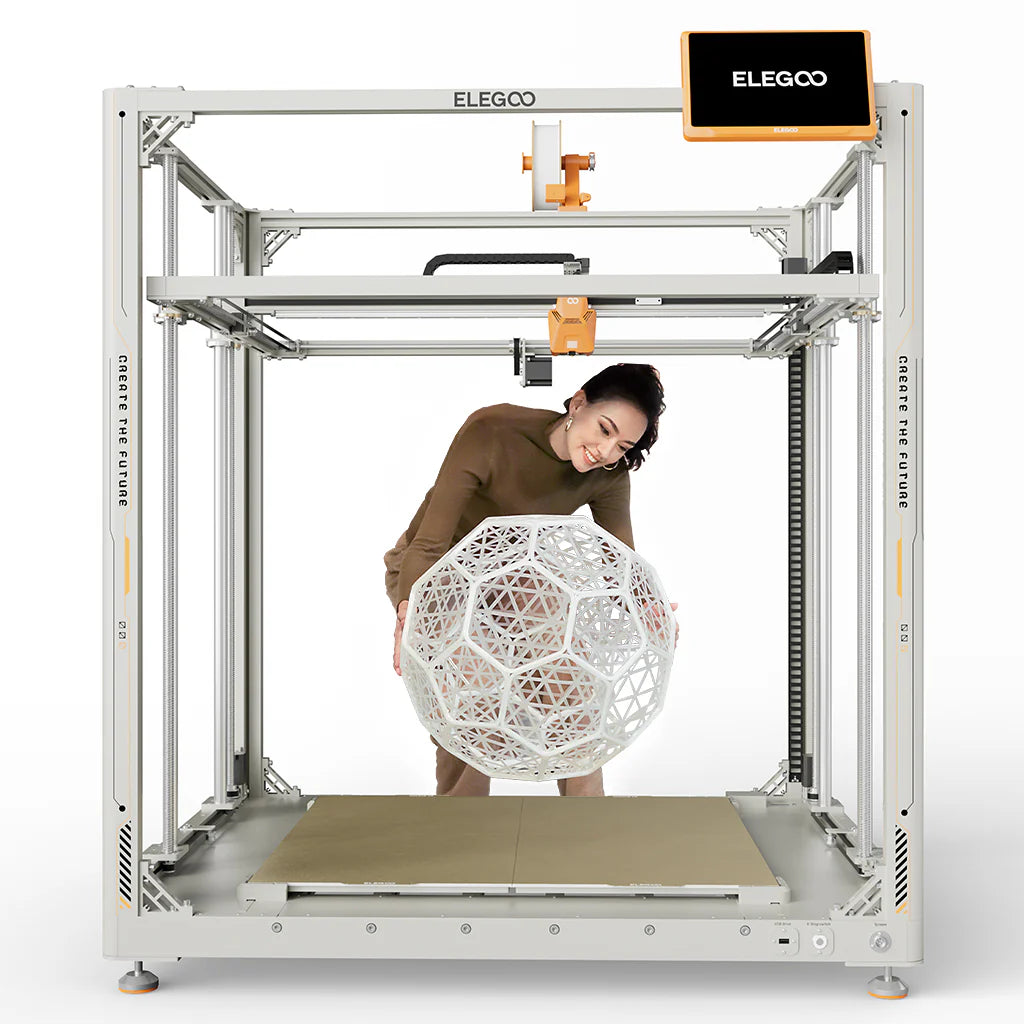

Gigantic in Size

With a build volume of 800mm x 800mm x 1000mm, the industrial-grade FDM printer not only meets the user's printing needs for oversized models, but also reduces the need to cut models into smaller sections for efficient printing.

*To better understand how large this printer is: Video or 3D Model Mockup of Giga.

Fast Printing

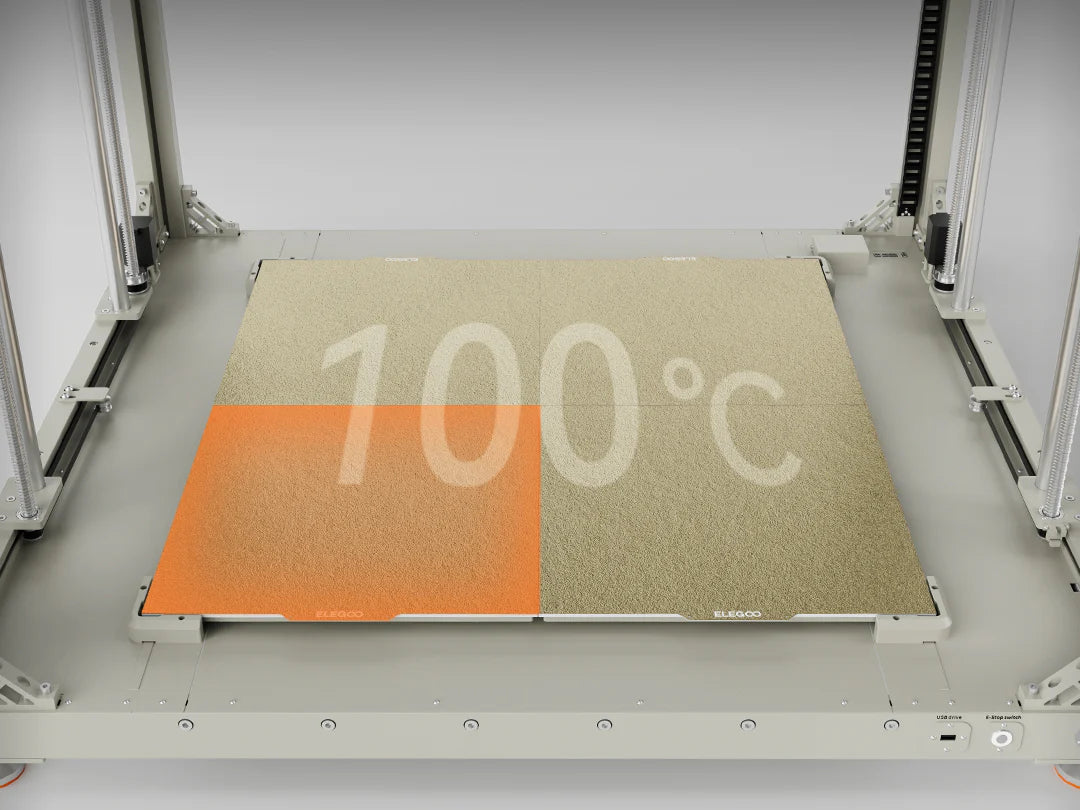

The heated bed consists of four independent (410*410mm) PEI magnetic high-temperature platforms with a maximum temperature of 100°C.

The four platforms can be heated simultaneously to reach 100°C over the entire area in 17 minutes (Ambient temperature: 25℃).

The platform where the model is located can also be automatically recognized and heated independently, or manually and independently controlled for increased energy efficiency.

Efficient Heated Bed

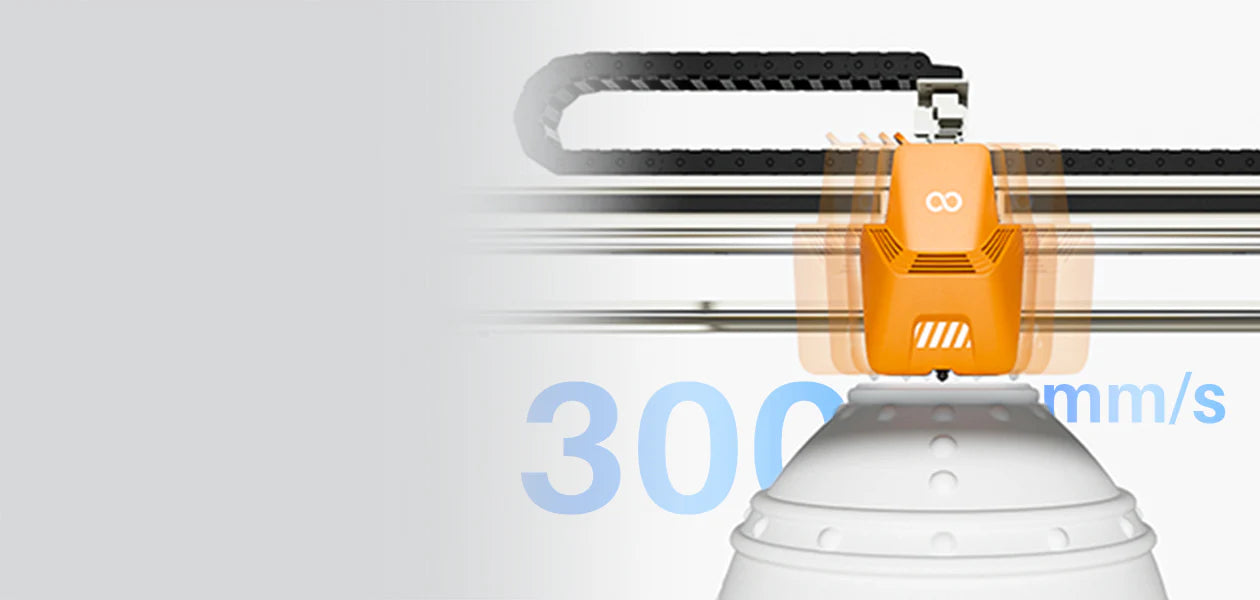

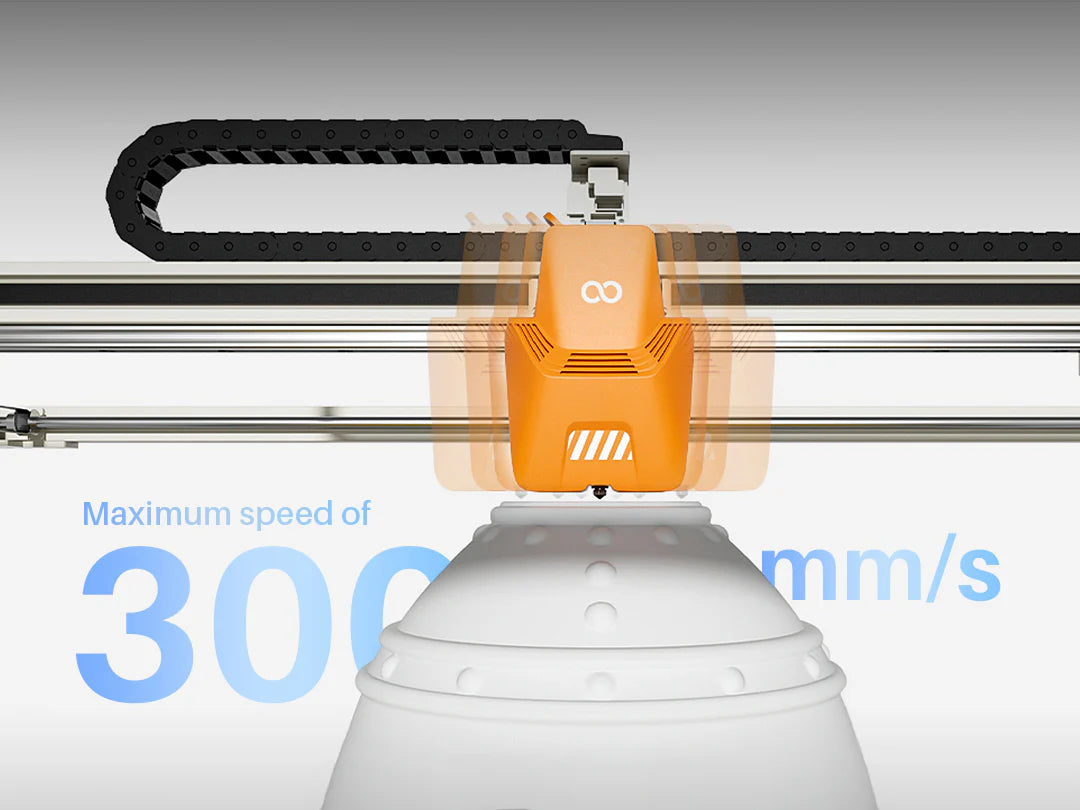

Utilizing a 64-bit 1.5G clock speed quad-core high-performance processor (SOC RK3328), it provides sufficient computing capacity while delivering 6 times the printing speed, with a maximum speed of 300mm/s (150mm/s recommended), which is the top end print speed for printers of its size.

Auto-Leveling

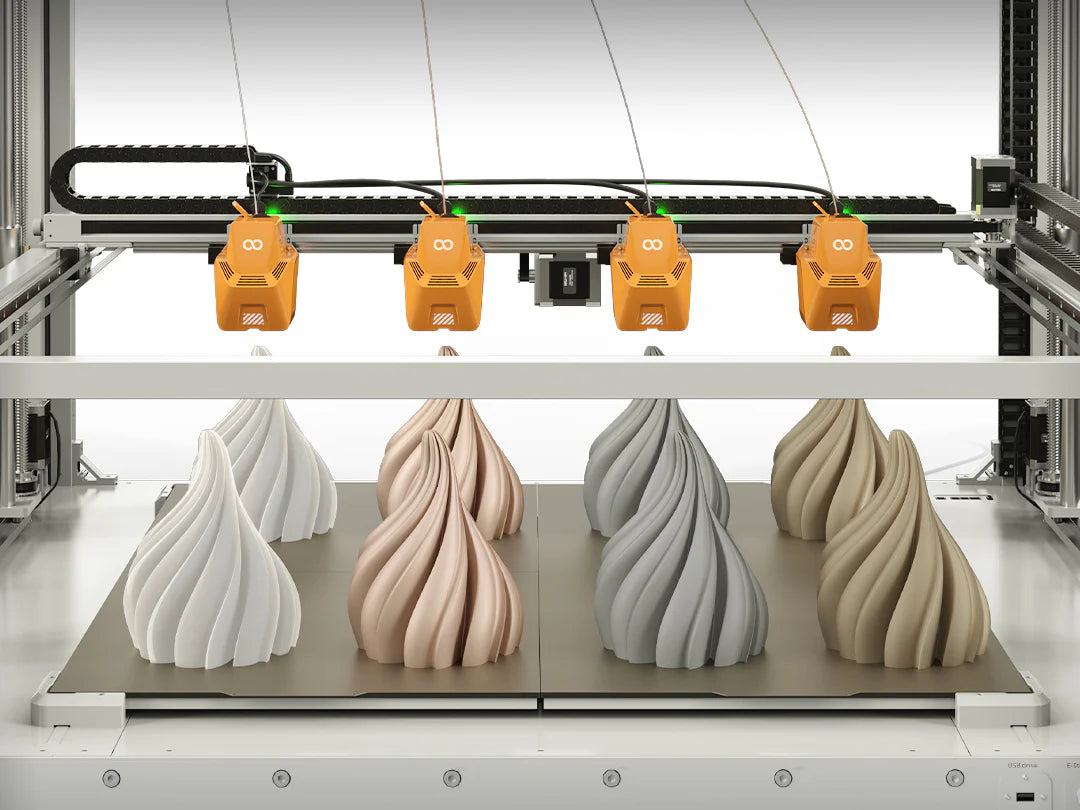

Three additional printheads can be added to the X-axis to realize simultaneous printing with four nozzles, supporting printing four of the same model，while each nozzle can be equipped with the same material and different color filament to achieve four different colored models of the same kind.

Upgraded Nozzle

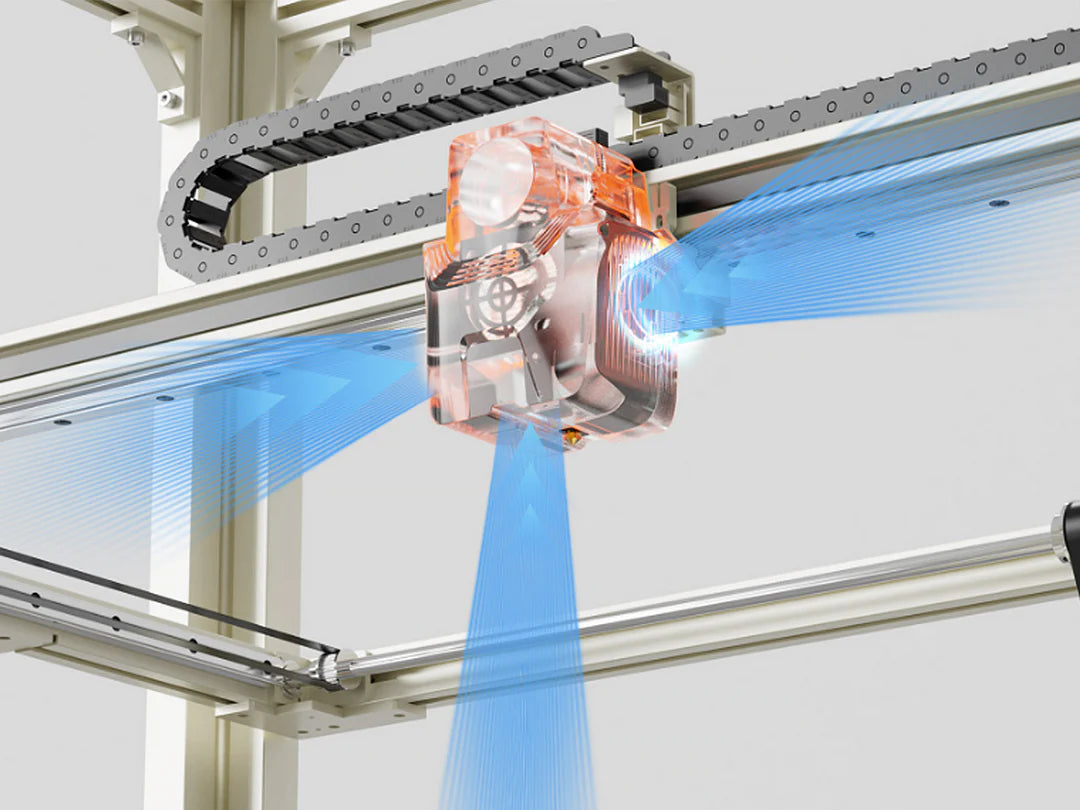

Thickened double-sided cooling fans can comprehensively enhance the model printing results. In addition, the fans are equipped with an intelligent control function that stops working when printing is complete, which saves energy and reduces noise as well as prolongs the lifespan. (5015 ball blower fan*2, 4010 ball axial fan*1)

Multi-Nozzle Printing

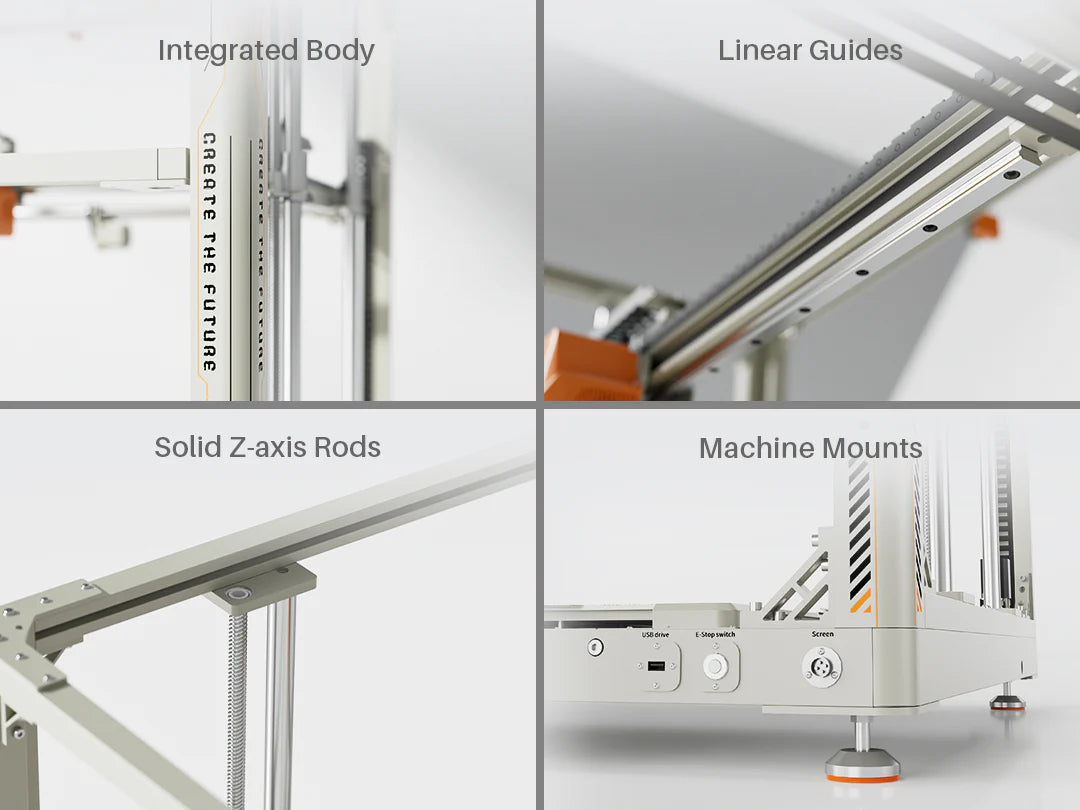

Integrated body, elegant yet durable. The X-axis and Y-axis are linear guides, effectively improving printing stability and increasing lifespan. The Z-axis features an upgraded version of the Z-Axis rod to make the machine run smoothly and ensure leveling precision. Machine mounts are designed with a carbon steel round base and rubber round anti-slip pad bottom.

Powerful Extrusion System

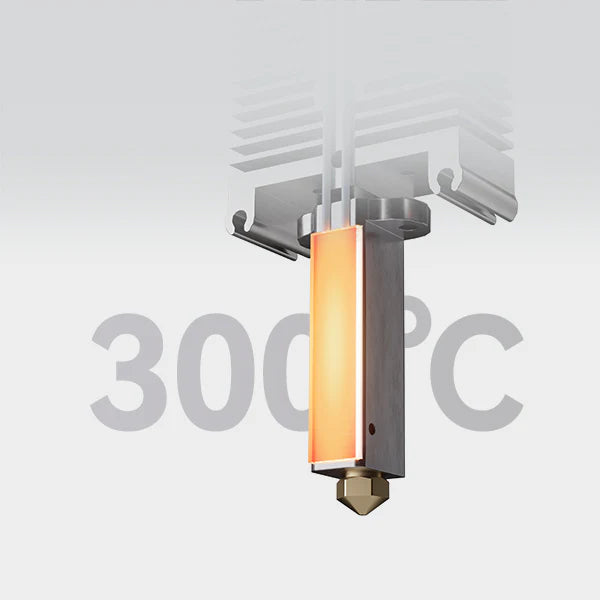

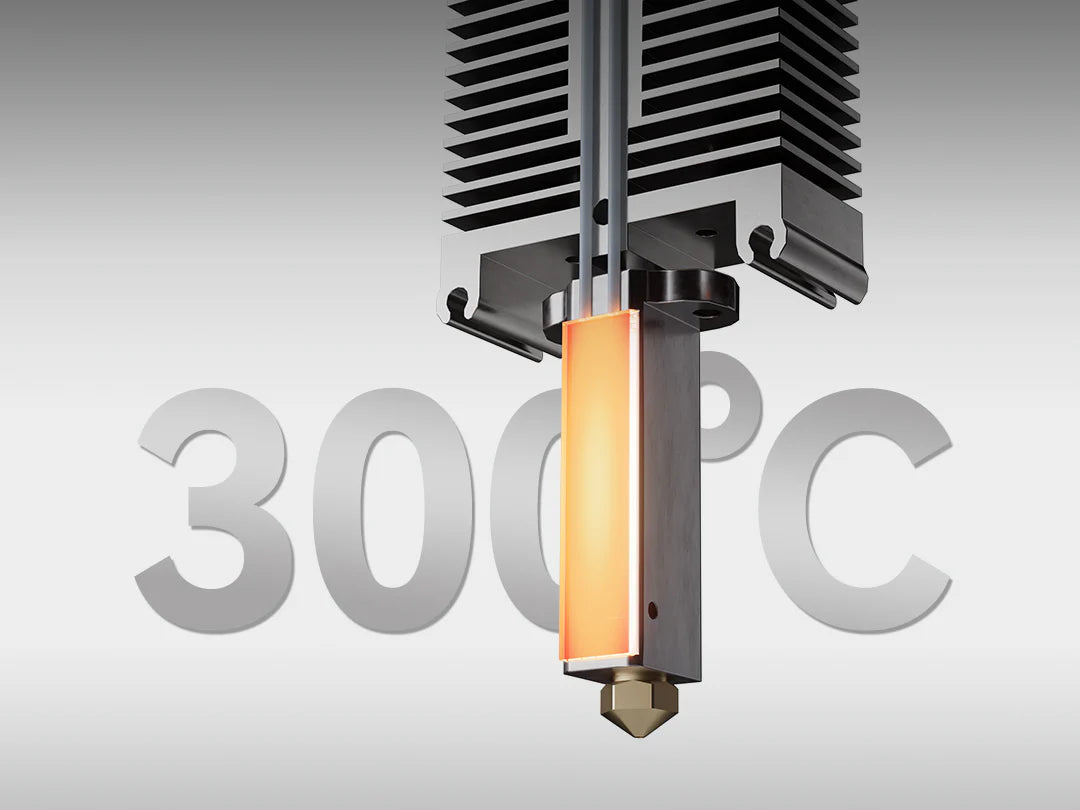

The upgraded 300℃ high-temperature nozzle adopts a proximal double-gear extrusion structure and full titanium alloy heat pipe. Plus, the nozzle is upgraded to chrome zirconium copper with a 60W ceramic heating pad for smoother and more uniform extrusion, which improves the printing precision.
In addition, the nozzle PID auto-calibration function provides more precise control of the nozzle temperature and the built-in acceleration sensor automatically calibrates resonance compensation parameters to further ensure print quality and enhance your printing experience.
Nozzle Diameter(included): 0.6mm
Nozzle Diameter(optional): 0.4mm/ 0.8mm/ 1mm

Ürün Özellikleri

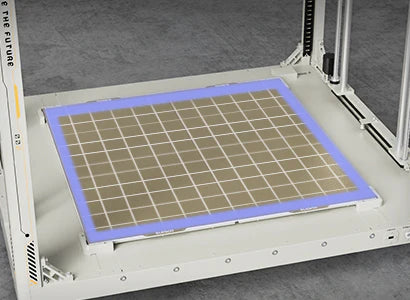

Auto-Leveling

Auto-Leveling

+ ×

Auto-Leveling

×

Adopting one-click automatic leveling and a non-contact high-precision sensor to automatically collect 100-point (10*10) of platform data to ensure the platform is level.

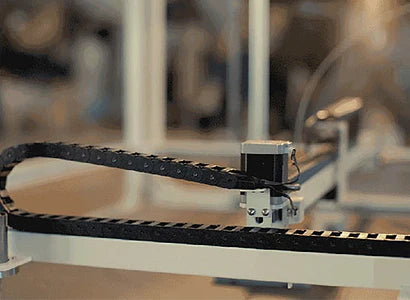

Caterpillar Cable Tracks

Caterpillar Cable Tracks

+ ×

Caterpillar Cable Tracks

×

The cables on the body are stored in caterpillar cable tracks, which prevents the cables from being worn or broken and you don’t have to worry about them affecting your prints. Furthermore, it prevents dust and other debris from entering the cables, ensuring the stability and reliability of the entire system.

Filament Detection & Power Loss Recovery

Filament Detection & Power Loss Recovery

+ ×

Filament Detection & Power Loss Recovery

×

No more worrying about being interrupted while printing. When there is a broken filament or no filament, the machine automatically sounds an alarm and pauses printing. Whether it's broken filament, no filament, power outage, or a manual pause in printing, you can resume printing again.

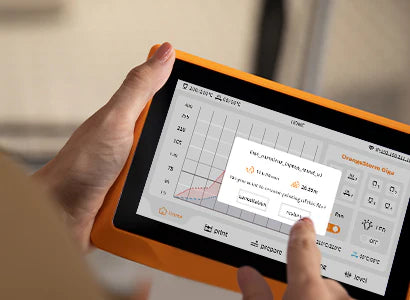

Portable 10.1-inch HD Capacitive Screen

Portable 10.1-inch HD Capacitive Screen

+ ×

Portable 10.1-inch HD Capacitive Screen

×

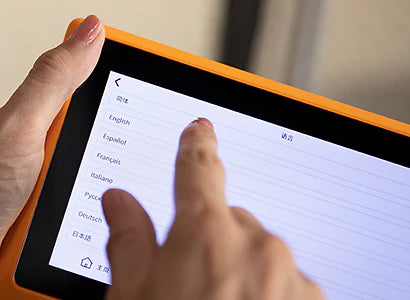

The 10.1-inch HD capacitive screen can be detached from the body for handheld operation while supporting ELEGOO Cura model preview and switching between eight languages.

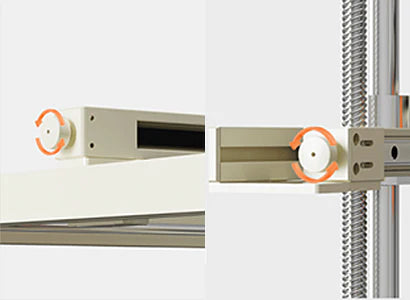

User-friendly Belt Knobs

User-friendly Belt Knobs

+ ×

User-friendly Belt Knobs

×

The X/Y axis belt is used to transmit the power of the motor and control the movement of the print head on the plane. The knobs design can easily and accurately control the tightness of the belt to obtain the best printing effect.

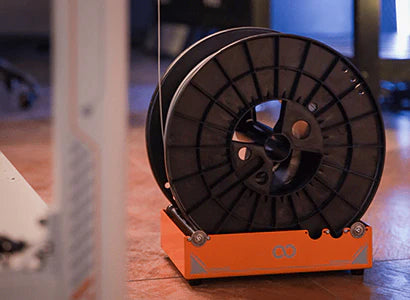

Large Spool Holder

Large Spool Holder

+ ×

Large Spool Holder

×

Crafted from high-quality sheet metal, our spool holder can accommodate filament spools up to 5kg with ease. Its compact and sturdy design ensures that your large-scale printing projects receive reliable and consistent support throughout the printing process.

Kutu İçersinde Ne var ?

  • OrangeStorm Giga 3D Printer
  • Printhead
  • Screen
  • Leveling Plate×2pcs
  • Spool Holder Arm
  • Filament Breakage Detector×2pcs
  • Z-axis Caterpilar Cable Tracjs Clip
  • Z-axis End Stop×2pcs
  • Filament Guide Aseemby
  • Detached Spool Holder Assembly(5KG)
  • Power Cable
  • Leveling Card
  • Grease
  • Proofile Corner Bracket×8pcs
  • Fasteners
  • Tools
  • Fasteners
  • User Manual

Spesifikasyon

Teknik detaylar

  • product model

    OrangeStorm Giga

  • printing technology

    FDM (Fused Deposition Modeling)

  • voltage

    100-120V/220-240V

  • file transfer method

    USB, LAN, WIFI

  • file format

    STL, OBJ

  • ui language

    English, French, German, Russian, Italian, Spanish, Japanese, Chinese

  • build volume

    800 x 800 x 1000 mm³

  • printing platform size

    820 x 820 mm² (4 independent 410 x 410 mm² PEI plates)

  • machine size

    1224 x 1164 x 1425 mm³

  • package size

    Bottom + XY Axis Components: 1350 x 1215 x 420 mm³ Two Z-Axis Components: 1350 x 1215 x 350 mm³

  • machine activity mm

    1224 x 1520 x 1570

  • max nozzle temperature

    300°C

  • max hot bed temperature

    100°C (ambient temperature: 25°C)

  • filament compatibility

    PLA / PETG / TPU

  • net weight

    104kg

  • gross weight

    145kg

  • resume printing

    Yes

  • filament detection

    Yes

  • max speed of tool head

    300 mm/s

  • max acceleration of tool head

    5,000 mm/s²

  • frame material
